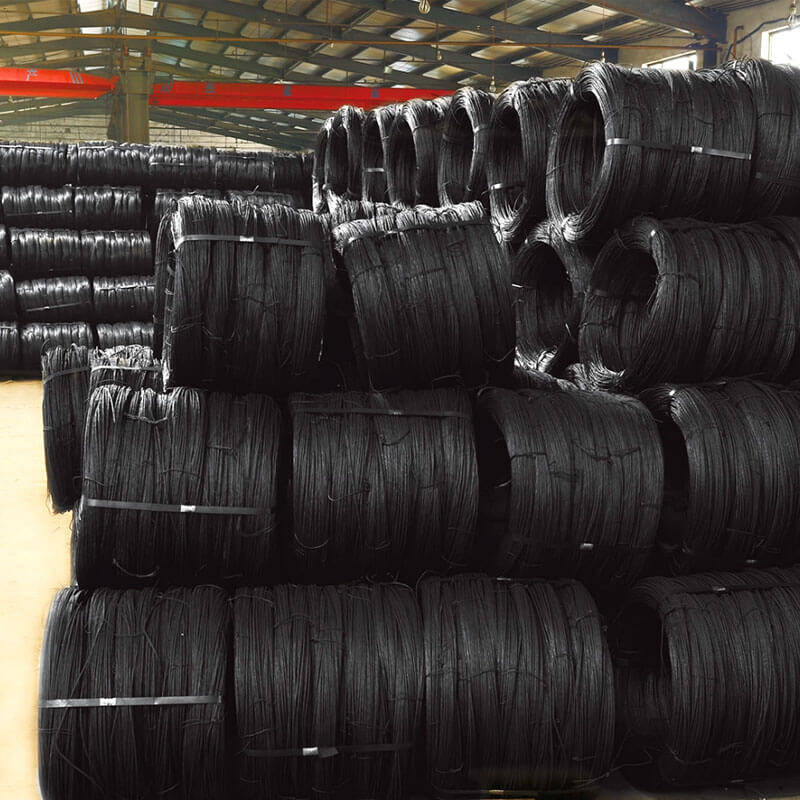

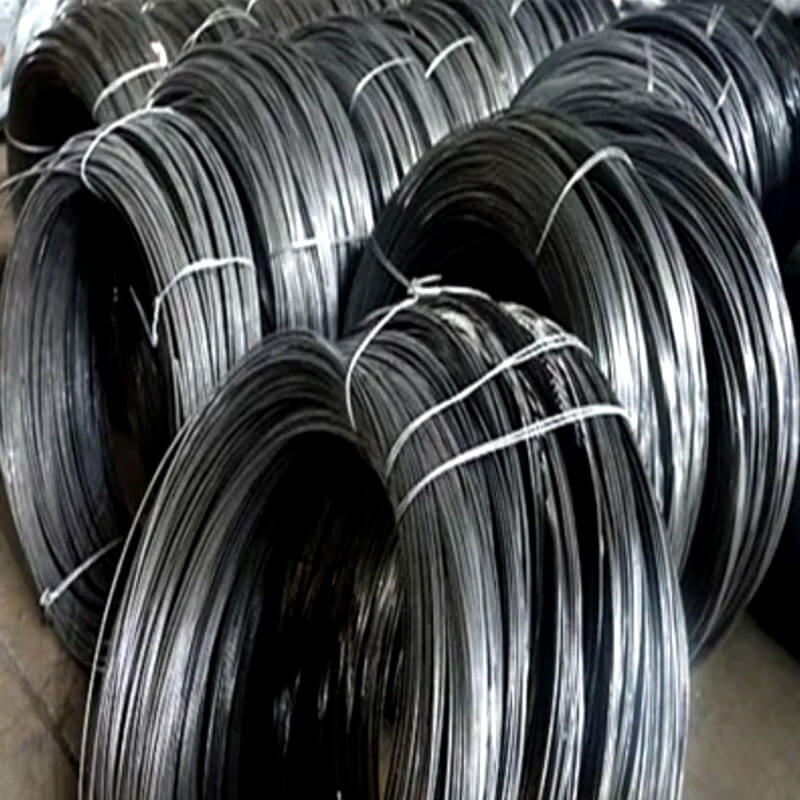

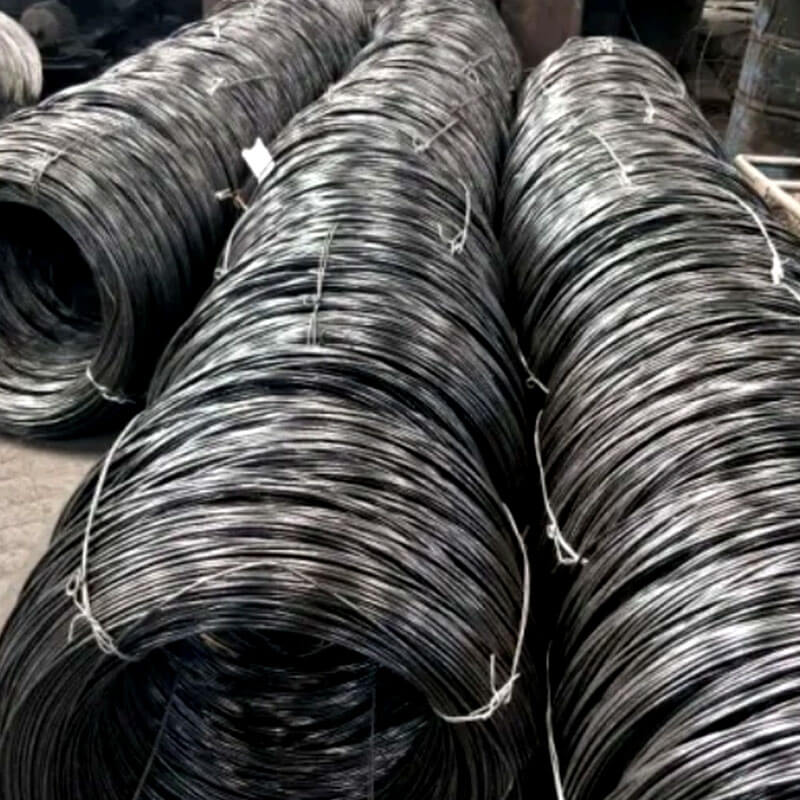

Black Wire/Black Hard Drawn Wire/Iron Wire/Reinforcing Wire/Plain Round Wire
Please contact us if needed

Basic Info.

Product Description

1. Material Q195

C≤0.07; S≤0.023; Si≤0.09; Mn≤0.32; P≤0.025.Because This type of wire rod has less Impurities, Q195 is fit for drawing.The diameter is 6.5mm. Generally, Daily output of xinwang is 120 tons.

2. Drawing

There are two kinds of drawing machine: powder drawing and water drawing. powder drawing is fit for junior drawing(6.5mm~4.0mm).One powder drawing machine has 4 tanks and 4 molds. One tank is matched with a mold. Each of them are offered energy by a electromotor . 0.9mm(max)can be "eat" when the wire cross a mold. There are no loss of weight during drawing.

3. Annealing

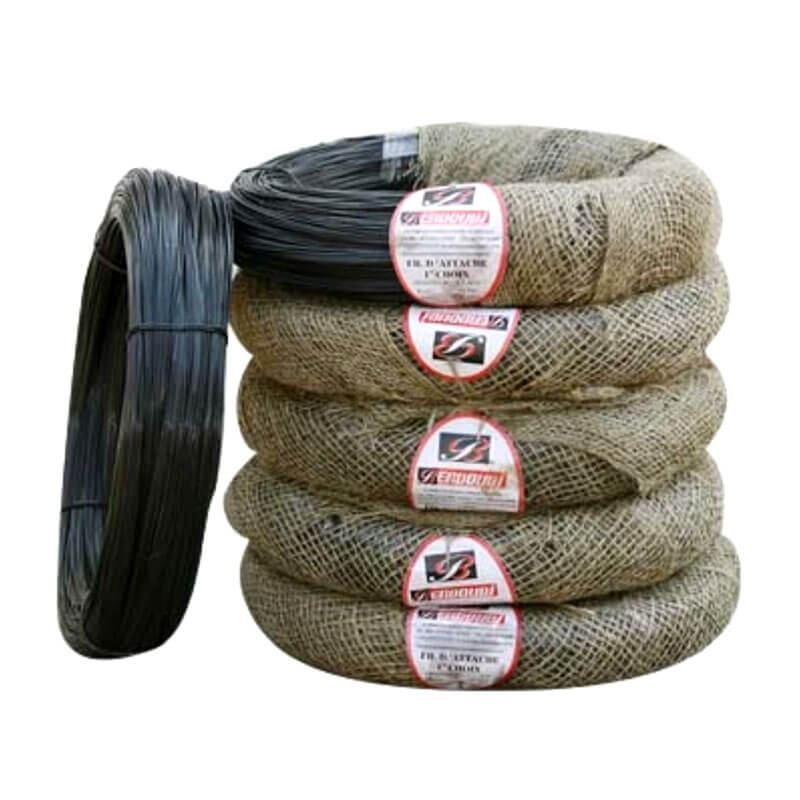

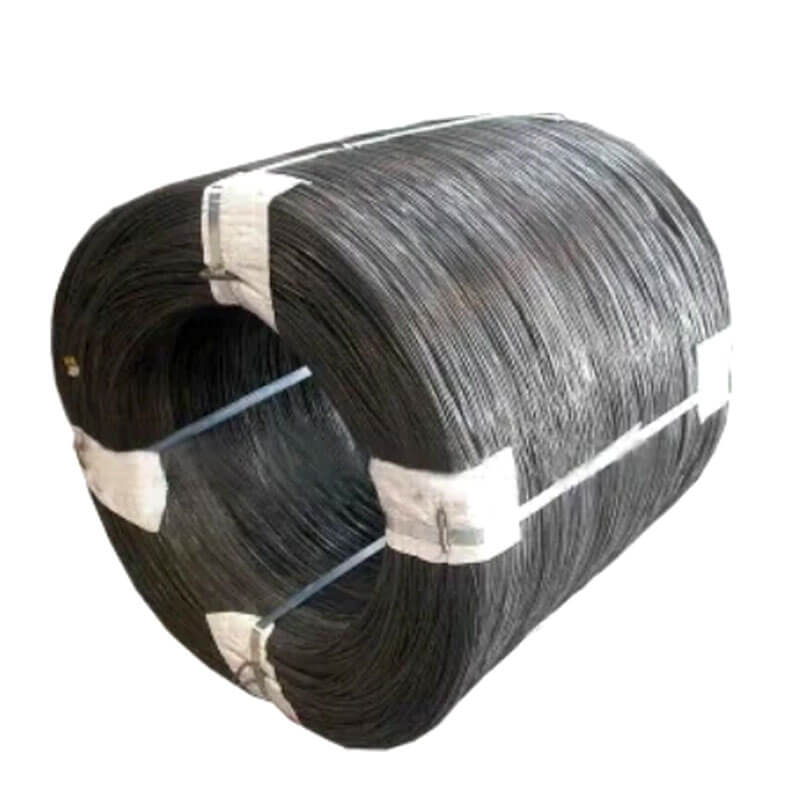

Anneal is to low the tensile strength of wire. The stove is solid and built with red bricks. The architecture of anneal stove is cuboid . Different thickness of wire require different temperature. Range is from 700°C to 900°C. Output of the anneal stove, the tensile strength is 400N~600N. Standard coil is10kg ,25kg ,50kg and 100kg .we can coiled with customer's order.

Detailed Photos
